 Residential 1-Line 2017      $325

Residential 1-Line Load Calculation Software

for Multifamily Dwellings

Residential 1-Line 2017 is a full function design package that will simplify the time consuming task of preparing 1-line drawings, panel schedules, and load calculations. Simply input the loads for your sub panels and the program will create a Residential 1-line drawing.



SYSTEM REQUIREMENTS

Residential 1-Line 2017 is an Microsoft Excel template program that will run on any Windows platform. User furnished copy of Microsoft Excel 97 or later is required.


View Input Screens

DEMO

Main Panel Demo

Dwelling Panel Demo House Panel Demo


Printouts

Main Panel Printout Dwelling Panel Printout House Panel Printout


1-Line Drawing User's Manual


FEATURES

> Optional Calculation Method
> Complete Load Calculations
> Fault Current Calculations
> Voltage Drop Calculations
> Conduit & Cable Sizing

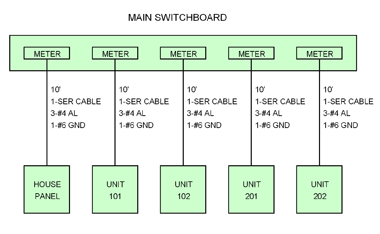

> Complete Riser Diagram
> Code Year Selectable NEC
   2017, 2014, 2011, 2008, 2005
> Voltage Drop Adjustment

> 30 - Dwelling Panels
> 2 - House Panels
> Single Phase or Three Phase


Select Delivery Method
Download
   (No Hard Copy)
Download/Hardcopy
   (Download + CD Hard Copy)
Hard Copy
   (CD Hard Copy no Download)

Non Cart Orders
If you prefer not to use the shopping cart you may place your order by calling (208) 443-6627 or buy using the order forms below.
Excel Order Form
PDF Order From
Upgrades   $150
If you are a registered user of a previous version of Service Software or Residential 1-Line Software you may place your upgrade order by calling (208) 443-6627 or buy using the order forms below.
Excel Upgrade Order Form
PDF Upgrade Order Form
